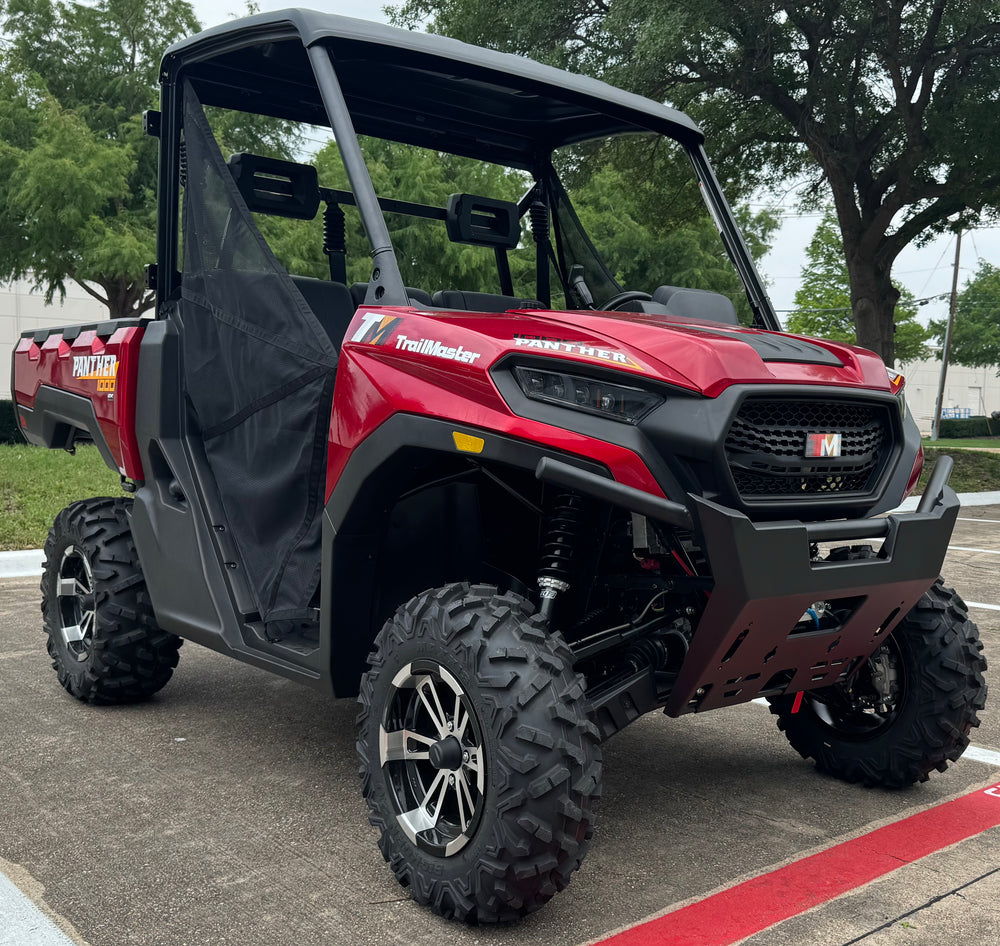

Transform your off-road adventures with the TrailMaster Panther 550 UTV

With its larger body and heavy-duty suspension, you'll experience a smoother ride on any terrain. With a 34hp EFI engine and four-wheel drive, you'll have the power and capability to conquer steep slopes and tough trails. Plus, features like a hard top, winch, and flip cup holder add convenience and comfort to your ride. Explore with confidence and style in this CA legal UTV

Key features

Hard top
3000 lbs-winch
Windshield
Side Nets
Four Wheel Drive, Front and Rear differential with lock
Liquid cooled high performance 498.6 cc 34 HP engine, with max power 24Kw
Equipped with H/L gear, can climb up to 30-degree slopes with ease with full capacity
Bench seat can fit up to 3 persons
Flip cup holder
Large storage space under seat
Four-wheel independent suspension for much better driving experience
EFI
Digital speedometer/odometer
LED Hi/Lo beam head light
Rear view center and side mirrors
Sporting steering wheel
Turn signals
Safety harness seatbelt
Big off-road tires: F / R: 26 x9-14 / 26 x 11-14
Polished aluminum wheels
Front bumper
Adjustable heavy duty front and rear shock absorber
Rack and pinion steering wheel
Front and rear hydraulic disc brake
Large gas tank
12v power outlet
Horn

Engine

EPA Certified
Engine Type: 4-stroke, single cylinder, liquid cooled
Displacement: 498.6cc
Compression Ratio: 10.2:1
Max HP: 34HP
Bore & Stroke: 92(mm) & 75(mm)
Max Power and Crankshaft Speed: 24/6300kW/r/min
Max Speed: 50mph
Climbing Ability: 30 degrees
Ignition: ECU
Fuel System: EFI
Starting System: Electric
Battery: 12V 30Ah
Engine Oil: SAE 15W/40

General

Transmission: Automatic, L-H-N-R, with locking differential
Drive Train: Shaft Drive; 2WD-4 WD:
Drive Mode: Four Wheel Drive, Front and Rear differential with lock
Suspension, F / R: Front MacPherson, Rear Dual A-ARM
Brakes, F / R: Both hydraulic brakes, Disc
Tires, F / R: 26 x 9-14 / 26 x 11-14
Fuel Tank Capacity: 7.93 gallons
Wheels: Aluminum
Weight, N.W.: 1386 lbs
Max Load: 1000 lbs
Dump Bed Capacity: 550 lbs
Towing Capacity: 820 lbs

Dimensions

Wheelbase: 74”
OA L x W x H: 120.6”x63.7”x80.7”
Seat Height: 18.9” (From floor board to seat)
Min Ground Clearance: 11.4”
Bump Bed Size: 48”X36.4”x11.8”
