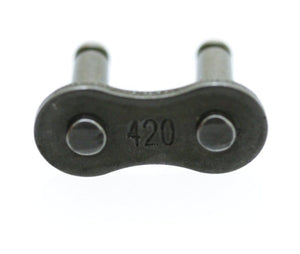

#420 Master Link
Master link for chain marked 420 for Pocket bikes, ATVs, dirtbikes and motorcycles.
- Pitch: 12.70mm
- Roller Diameter: 7.77mm
- Width Between Inner Plates: 6.25mm
- Pin Diameter: 3.96mm
- Pin Length: (L) 14.70mm (Lc) 16.1mm
- Inner Plate Depth: 12.00mm
- Plate Thickness: 1.50mm
- Ultimate Tensile Strength: 16.00/3636 kN/LB
- Average Tensile Strength: 18.1 kN
- Weight per meter: 0.55 Kg/m
