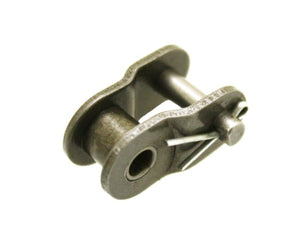

#420 Offset Link
Offset link for chain marked 420 for Pocket bikes, ATVs, dirtbikes and motorcycles.
- Pitch: 12.70 mm
- Roller Diameter: 7.77 mm
- Width Between Inner Plates: 6.25 mm
- Pin Diameter: 3.96 mm
- Pin Length: (L) 14.70 mm (Lc) 16.1 mm
- Inner Plate Depth: 12.00 mm
- Plate Thickness: 1.50 mm
- Ultimate Tensile Strength: 16.00/3636 kN/LB
- Average Tensile Strength: 18.1 kN
- Weight per meter: 0.55 Kg/m
